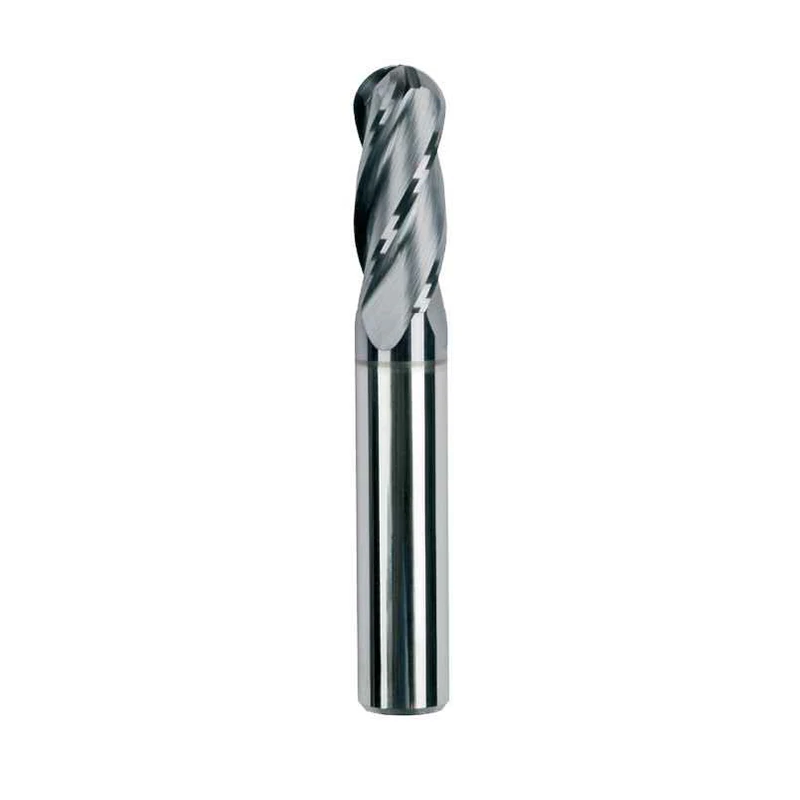

Solid Carbide 4 Flute Ball Nose Endmills

  • Solid carbide micro-grain end mills engineered for enhanced strength, high precision, and extended tool life.
  • Versatile general-purpose design suitable for efficient slotting and milling in carbon steels, tool steels, alloy steels, and stainless steels.
  • TiAlN coated and bright-finish variants provide superior cutting performance and improved wear resistance.
  • Available in multiple flute lengths—short, long, and extra-long—to enable easy access to deep corners & versatile machining.
  • Center-cutting geometry allows direct plunging into the material for versatile machining operations.
  • Rigid core construction with optimized flute geometry ensures stable cutting and smooth chip evacuation.
Size Range
ITEM CODE BRIGHT ITEM CODE TIALN DIA
(h10)		 SD
(h6)		 FL OAL
KCS05M3.00 KCS05M3.00TLC 3 3 12 38
KCS05M4.00 KCS05M4.00TLC 4 4 14 50
KCS05M5.00 KCS05M5.00TLC 5 5 16 50
KCS05M6.00 KCS05M6.00TLC 6 6 19 56
KCS05M8.00 KCS05M8.00TLC 8 8 20 63
KCS05M10.00 KCS05M10.00TLC 10 10 22 70
KCS05M12.00 KCS05M12.00TLC 12 12 25 75
KCS05M14.00 KCS05M14.00TLC 14 14 30 89
KCS05M16.00 KCS05M16.00TLC 16 16 32 89
KCS05M18.00 KCS05M18.00TLC 18 18 35 100
KCS05M20.00 KCS05M20.00TLC 20 20 38 100
